What Are The Standard Sizes of Flat Bars?

Introduction

In the ever-evolving world of steel manufacturing, where precision and reliability are essential, Zhongjian has established itself as a leading provider of high-quality steel products. With a focus on innovation and customer satisfaction, flat bars stand out as a versatile and essential component for countless applications. Understanding the standard sizes of flat bars is crucial for professionals in these fields, and this article aims to provide a comprehensive guide on the topic, ensuring that readers have the knowledge they need to make informed decisions. Visit Zhongjian to learn more about what are the Standard sizes of flat bars.

What are the Standard Sizes of Flat Bars?

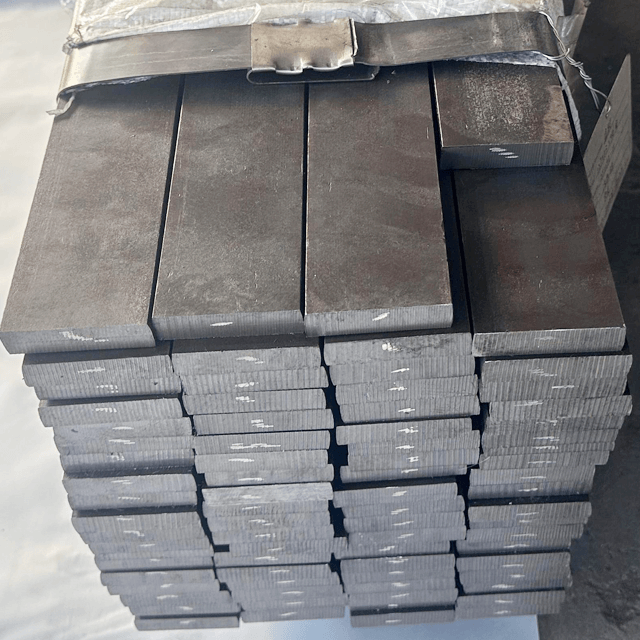

Flat bars are fundamental steel sections used across various industries due to their strength, versatility, and ease of fabrication. These elongated steel products, characterized by their rectangular cross-section, are typically made from mild steel—a material known for its affordability, weldability, and formability. When it comes to standard sizes, flat bars are available in a wide range of dimensions to cater to different project requirements.

Width and Thickness Dimensions

The dimensions of flat bars vary significantly based on their intended application. Standard widths range from 10mm to 450mm, while thicknesses can span from 3mm to 30mm. These dimensions are carefully selected to meet the structural needs of various projects. For example, a narrow and thin flat bar (e.g., 20mm x 3mm) might be ideal for lightweight structural components, whereas a wider and thicker bar (e.g., 200mm x 20mm) would be more suitable for heavy-duty applications such as beams and supports.

Length Specifications

In addition to width and thickness, the length of flat bars is another critical dimension. Standard lengths typically range from 6.100 meters to 6.400 meters, although custom lengths can also be produced based on specific requirements. This flexibility ensures that flat bars can be tailored to fit seamlessly into any project, whether it involves construction, automotive manufacturing, or general engineering.

Technical Specifications and Weight Calculation

Understanding the technical specifications of flat bars is essential for accurate project planning and material procurement. One of the key aspects is the weight calculation, which is crucial for load-bearing assessments and transportation logistics.

The weight per meter (Kg/m) of a flat bar can be calculated using the formula:

Weight per meter (Kg/m)=Width (mm)×Thickness (mm)×0.00785F or example,

a flat bar with dimensions of 50mm width and 8mm thickness would have a weight per meter of: 50×8×0.00785=3.14 Kg/m

To determine the total weight, simply multiply the weight per meter by the length of the bar.

For instance, a 4.2-meter length of this flat bar would weigh: 3.14 Kg/m×4.2 meters=13.188 Kg

This calculation ensures that engineers and project managers can accurately estimate the material requirements and structural integrity of their projects.

Applications of Flat Bars

The versatility of flat bars makes them suitable for a wide range of applications across various industries. Here are some of the most common uses:

Construction

In the construction industry, flat bars are indispensable for structural frameworks, reinforcement, and support beams. They provide the necessary strength and durability to uphold buildings, bridges, and other infrastructures. For example, flat bars are often used to reinforce concrete structures, ensuring that they can withstand significant loads and environmental stresses.

Automotive

The automotive sector relies heavily on flat bars for manufacturing vehicle components. These bars are used in the production of chassis parts, suspension systems, and other structural elements that require high strength and durability. The ease of welding and formability of mild steel make flat bars an ideal choice for automotive applications.

General Engineering

Flat bars are also widely used in general engineering for applications such as machinery components, tooling, and fabrication projects. Their rectangular cross-section and customizable dimensions make them suitable for creating various parts and structures that require precise engineering.

Choosing the Right Flat Bar for Your Project

Selecting the appropriate flat bar involves considering several factors, including the intended application, load requirements, and environmental conditions. Here are some tips to help you choose the right flat bar:

1. Determine the Required Dimensions: Assess the structural requirements of your project to determine the appropriate width, thickness, and length of the flat bar.

2. Consider the Grade of Steel: Different grades of mild steel offer varying levels of strength and durability. Consult with a technical expert to select the right grade for your application.

3. Evaluate the Finish: Depending on the environment, you may need a specific finish to protect the flat bar from corrosion. Galvanized options, for example, offer enhanced corrosion resistance.

4. Seek Professional Advice: Technical support teams can provide valuable insights and recommendations based on your project specifications.




Conclusion

Flat bars are essential components in numerous industrial and construction applications, and understanding their standard sizes is crucial for successful project execution. With a wide range of dimensions, grades, and finishes available, flat bars can be tailored to meet the specific needs of any project. By considering factors such as width, thickness, length, and steel grade, professionals can ensure they select the right flat bar for their application. Whether used in construction, automotive manufacturing, or general engineering, flat bars provide the strength, versatility, and reliability needed to support even the most demanding projects.

Frequently Asked Questions (FAQ)

Q1: What are the most common widths and thicknesses of flat bars?

The most common widths range from 10mm to 450mm, while thicknesses typically vary from 3mm to 30mm. These dimensions can be customized based on specific requirements.

Q2: Can custom lengths of flat bars be produced?

Yes, custom lengths can be produced based on specific project requirements. This flexibility ensures that flat bars fit seamlessly into any application.

Q3: What grades of steel are available for flat bars?

Common grades include mild steel (Grade 43A), which is known for its affordability and versatility. Other grades, such as Grade 50B, may also be available for specific applications.

Q4: How is the weight of a flat bar calculated?

The weight per meter (Kg/m) is calculated using the formula: Width (mm) × Thickness (mm) × 0.00785. The total weight can be determined by multiplying the weight per meter by the length of the bar.

Q5: What applications are flat bars commonly used for?

Flat bars are widely used in construction for structural frameworks and reinforcement, in automotive manufacturing for vehicle parts, and in general engineering for machinery components and tooling.

Q6: Where can I get more information or technical support?

For more information or technical support, it is recommended to contact a reputable steel supplier or manufacturer. Their experts can provide detailed guidance on selecting the right flat bar for your project.
