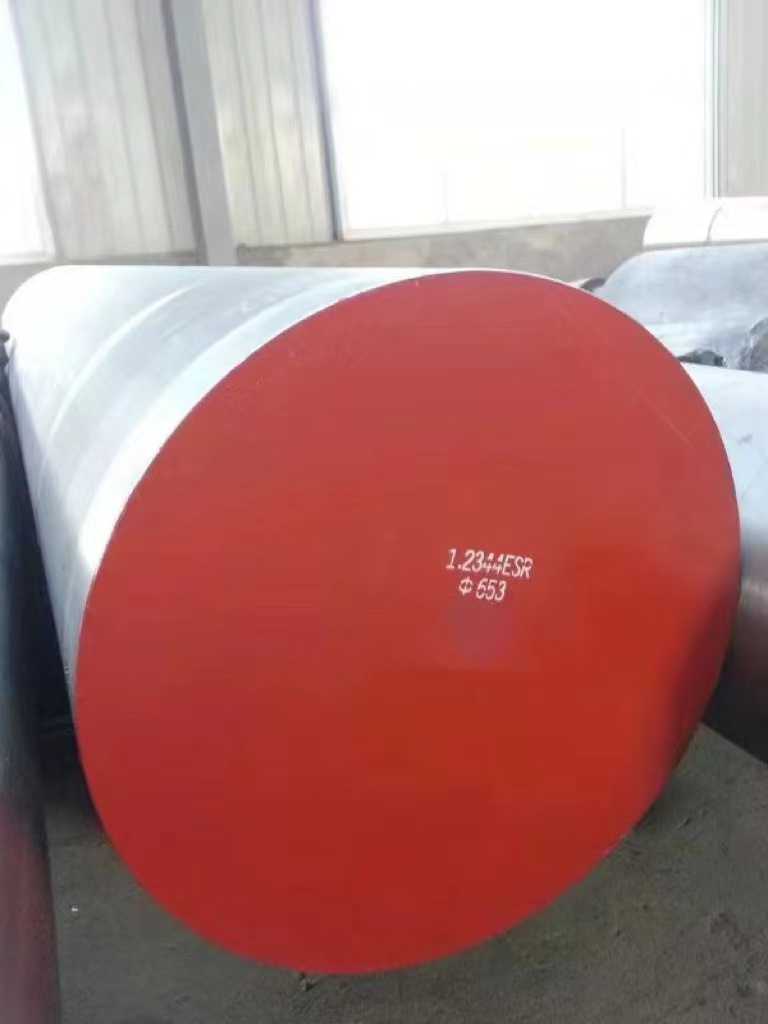

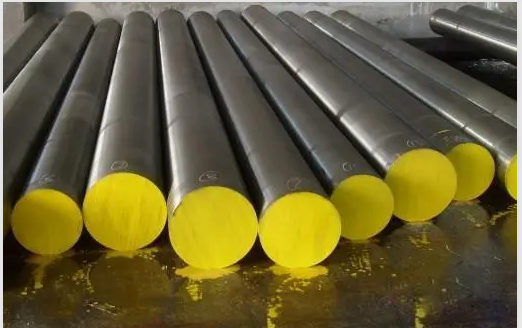

1.2344/1.2365/1.2343/1.2367/1.2746/1.2767/1.2714
ZJ
HOT WORK steels, as their name implies, are used where operating temperatures of the tool may reach levels where resistance to softening, heat checking and shock is important. It has high heat resistance and medium wear resistance, Distortion in hardening is low.
Uses as die-casting dies, extrusion dies, plastic molding dies, hot forging dies, hot gripper and heading dies, hot mandrels, hot work punches.
Characterised by the following properties:
Resistance to tempering
Resistance to thermal shocks
High-temperature strength
High-temperature toughness
High-temperature wear resistance
High-temperature corrosion resistance
Available Sizes :
| PRODUCT | DELIVERY CONDITION AND AVAILABLE DIMENSIONS | |||
| ROUND | COLD DRAWN | CENTERLESS GROUND | PEELED | TURNED |
| DIAMETER IN MM | 2.50 - 12.0 | 8.5 - 30.0 | 16 - 75 | 75 - 610 |
| SQUARE | HOT ROLLED BLACK | FORGED ALL SIDE MILLED | ||
| SIZE IN MM | 7.5 X 7.5 - 50.0 X 50.0 | 55 X 55 - 510 X 810 | ||
| FLATS | HOT ROLLED BLACK | HOT ROLLED, 2 EDGE MILLED | FORGED ALL SIDE MILLED | |
| THICK x WIDTH IN MM | 6 - 30 X 20 - 130 | 13 - 80 X 150 - 410 | 90 - 405 X 100 - 810 | |
| DISC | 400 - 800 MM DIA X 80 - 400 THICK | |||
